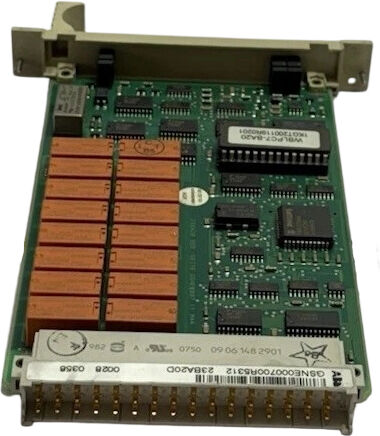

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC

  • 23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
  • 23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
تفاصيل المنتج:
مكان المنشأ: السويد
اسم العلامة التجارية: ABB
إصدار الشهادات: COC
رقم الموديل: 23BA20
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 قطعة
الأسعار: 1500
تفاصيل التغليف: إبداعي
وقت التسليم: 5-8 أيام عمل
شروط الدفع: تي/تي
القدرة على العرض: 10 قطعة في اليوم
اتصل
مفصلة وصف المنتج
اسم: 23BA20 GSNE000700R5312 نموذج: 23BA20
طَرد: معيار ضمان: 12 شهرا
الوزن الإجمالي: 2.2 رطل / 35.2 أوقية / 1 كجم حجم التعبئة: 7 "× 7" × 4 "(18 سم × 18 سم × 10 سم)
مهلة: 1 ~ 3 أيام جودة: 100 ٪ العلامة التجارية
مخزون: متاح
إبراز:

ABB binary output board 16 channel,ABB module 24-60 VDC,binary output board with warranty

,

ABB module 24-60 VDC

,

binary output board with warranty

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
Product Specifications
Brand Name ABB
Model 23BA20
Product ID GSNE000700R5312
Catalog Procontrol
Origin SWEDEN
Dimension 16*16*12cm
Weight 0.5kg
HS Code 8537101190
Payment T/T
Sales Price $1500
Warranty 12 months
Lead time 3-5 work days
Product Description
The 23BA20 board features sixteen output relays, organized into two independent groups of eight. Each group shares a common return contact, allowing the output channels to be powered by just two separate process voltage sources. This grouped design simplifies wiring and provides flexible integration into various control system architectures.
Output operation is managed by an integrated I/O microcontroller, the Input-Output Processor (EAP). The EAP activates specific outputs based on command requests received from the Communication Unit's (CMU) central processing module (VAP). It precisely controls the timing of pulse outputs by executing commands based on pre-loaded pulse length values, ensuring accurate and timed control signals.
The board incorporates comprehensive diagnostic and supervision functions for maximum reliability. The EAP performs a read-back of the output pattern before activation to verify commands. During an active output, it continuously monitors the 24V DC supply from the backplane bus that powers the relays. Furthermore, the EAP supervises the actual pulse duration, and any detected error is immediately indicated via onboard LED status indicators.
Additional Information
N/M N/M
YXU168E YT204001-JB/1
SDCS-IOE-2C 64018019
DATX 133 3ASC25H219
23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC 0
