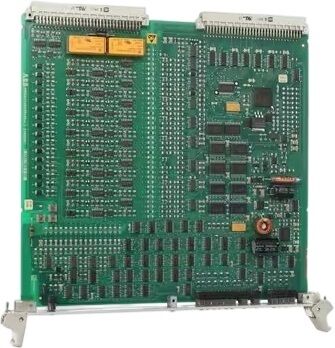

216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board

216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board

  • 216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board
216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board
تفاصيل المنتج:
مكان المنشأ: السويد
اسم العلامة التجارية: ABB
إصدار الشهادات: COC
رقم الموديل: 216DB61
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 قطعة
الأسعار: 3000
تفاصيل التغليف: إبداعي
وقت التسليم: 5-8 أيام عمل
شروط الدفع: تي/تي
القدرة على العرض: 10 قطعة في اليوم
اتصل
مفصلة وصف المنتج
الاسم: 216DB61 HESG334063R100 نموذج: 216DB61
طَرد: معيار ضمان: 12 شهرا
الوزن الإجمالي: 2.2 رطل / 35.2 أوقية / 1 كجم حجم التعبئة: 7 "× 7" × 4 "(18 سم × 18 سم × 10 سم)
مهلة: 1 ~ 3 أيام جودة: 100 ٪ العلامة التجارية
مخزون: متاح
إبراز:

ABB Binary I/P board,ABB Tripping Unit Module,HESG334063R100 ABB Module

,

ABB Tripping Unit Module

,

HESG334063R100 ABB Module

216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board
Product Overview
The 216DB61 binary I/P and tripping unit is a specialized interface module featuring 16 input and 8 output channels. This critical component serves as the essential link between protection logic and tripping actions, ensuring reliable signal transfer within the protection system.
Technical Specifications
Brand Name ABB
Model 216VC62A
Product ID HESG324442R112/F
Catalog Procontrol
Origin SWEDEN
Dimension 16*16*12cm
Weight 0.5kg
HS Code 8537101190
Payment T/T
Sales Price $3000
Warranty 12 months
Lead Time 3-5 work days
Functional Description
  • 8 Output Channels: Dedicated to transferring tripping commands from activated protection functions directly to the 216GA62 tripping relay module
  • 16 Input Channels: Receive external binary signals from the 216GE61 I/P relay module and forward them via the system bus to the 216VC62a processing unit for logic evaluation
  • Dual Connector Design: Upper connector "a" for inputs CHI01...CHI16, and lower connector "b" for outputs CHO01...CHO08
  • Configurable Operation: Plug-in jumper BR1 on the PCB determines whether "ENABLE" and "BLOCK CH OUT" functions are active, controlling tripping output channel status
Note: The enabling/blocking function applies solely to the 216DB61 unit itself and does not affect other system components.
Reference Information
07NG20 GJR5221900R2
07EB61 GJV3074341R1
QHFT201 YL681001-AB
216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board 0
